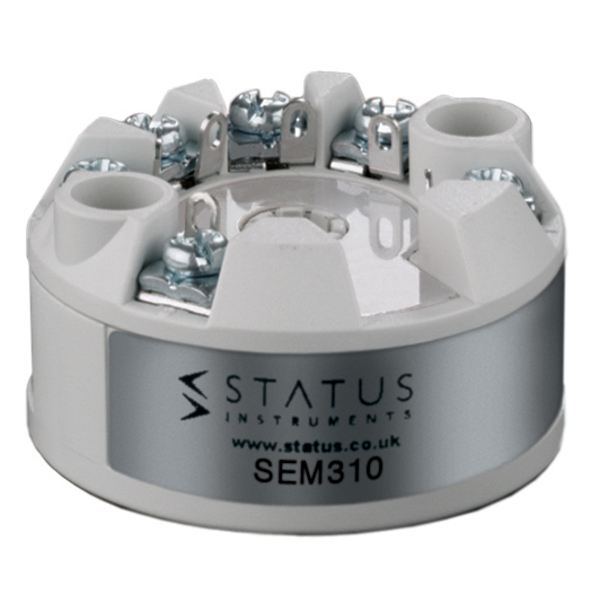

HART Temperature Transmitter In Head Puck – Status SEM310

A HART In Head Universal Temperature Transmitter Puck manufactured by Status, the SEM310 MKI

• Accepts PT100, T/C & mV or Slidewire Sensors
• HART Protocol
• Universal Input
• Sensor Burnout Detection
• ATEX Version Available (the SEM310x)

Note(1): This is the MKI SEM310 (MKI units have a gray body) which supports a single temperature sensor. There is also a MKII SEM310 (MKII units have a black body) which is more expensive and supports two temperature sensor inputs. The vast majority of temperature sensing applications only require a single sensor, i.e. MKI.

Note(2): We also recommend this device for use as a HART diagnostic tool performing the role of a “known good device”. When working with unknown HART devices either on the bench or in the field it is useful to have a “known good device” to confirm if the other device is genuinely non responsive or not. These HART pucks are very small and light weight, hence ideal as a “known good device” for HART diagnostic purposes.

What you will get:

A Status SEM310 MKI HART In Head Temperature Transmitter Puck

What you will need (i.e. not included):

1. A HART Communicator for configuring the device. We recommend our Handheld HART Communicator, or DevCom2000 for Windows devices, or DevComDroid for Android devices, but all HART software is supported
2. A way of powering the SEM310 (10-40Vdc)
3. A Thermcouple, PT100 or mV sensor and housing

Downloads (Datasheet, Manual, Files, etc):

Please see the Downloads tab above.
